Brass Underfloor Three Way Motorised Valve IP65 Protection DC12V

Product Categories
Shanghai Runpaiq Technology Co., Ltd.
Contact Now

Brass Underfloor Three Way Motorised Valve IP65 Protection DC12V

  • 1
  • 2

Brand Name : Runpaq

Model Number : TFW-15

Certification : NONE

Place of Origin : China

MOQ : 1000 pieces

Price : USD14/piece (500-1000 pieces) , USD10.5 (>1000 pieces)

Payment Terms : D/P, T/T, L/C, D/A, Western Union

Supply Ability : 200000 sets/month

Delivery Time : 15-21 days

Packaging Details : carbon + pallet

Valve body material : CASTING, STAINLESS STEEL, BRASS, PLASTIC, UPVC

Work current : <100 mA

Work voltage : DC3-6V / DC12V / AC85-230VAC

Pressure rating : Low pressure, medium pressure, high pressure

Open / close time : <15 S

Torque : 3.5 NM

Power : 2 w

Protection : IP65

Application : general, temperature control, HVAC,

Product name : Electric ball valve actuator motor

Contact Now

underfloor heating ball valve, temperature control valves rod brass, stainless steel

Product description

A temperature control valve, is similar to all the control valve. The main advantage is that the zone control valve helps to maintain the temperature of a desired process at a specifice level by combination with a thermostat. It's often abbreviated as TCV - Temperature control valve.

Functions

Wired temperature control valve have temperature controller and Valve ,the temperature Controller detects the ambient temperature ,and the Valve through temperature controller output AC220V power supply.

  • External AC220V as power source
  • The sensor accuracy: ±1°C
  • The controller detects the current temperature in time
  • Set the temperature Range: 5°C ~35°C
  • The current temperature is lower than the set temperature (set temperature -1) and the valve will open automatically
  • The current temperature is higher than the set temperature (set temperature +1), and the valve will close automatically
  • The temperature controller “Power Off” is closed it’s control function, actual execute “closed-Valve” instruction, and then closed the valve
  • Press ”Power On” button, open the temperature controller
  • Press “M” button, set the temperature controller “Refrigeration﹠Heating” mode
  • Press”+” button, add the set temperature
  • Press”-“ button, reduce the set temperature

Our advantages

  • More than 50 types, diameter ranges from DN15 to DN40, it features small torque, low electricity consumption,leak-proof, high pressure rating.
  • Customized production available, thanks to our strong mechanical machining and milling capability
  • Sturday valve body with reasonable structure design, and best material to be used
No Name Material Advantage
1. O-ring

Import

fluoro rubber (green)

 Resistance to high temperature, oil, corrosion, chemicals, Work temp.: —30℃+280℃.Quadruple seals, minimize the risk of leakage.
2. Drainage Drain just in case leakage happens
4 0-ring EPDM (red) Between nut and valve body, extra external leak proof, reduce the possibility of internal leak
8. Ball Brass or SS304 Finely polished, rack nickel plating (not barrel plating), smooth surface, improved torque performance
9. Water proof G Avoid water into housing, seal between valve body and valve housing
No Name Material Advantages
5. Wall thickness 2.0mm, PN20
6. Teflon washer Import teflon

1. Import teflon tube, numerical processing to perfectly match with ball surface

2. Minimal deformation, polish surface, wearable
7 0-ring EPDM

1. Good elasticity, as buffer after Teflon washer to improve seal effect

2. Reasonable structure design, ensures perfect holding margin

Brass Underfloor Three Way Motorised Valve IP65 Protection DC12V Brass Underfloor Three Way Motorised Valve IP65 Protection DC12V

Product dimensions

Valve body material Connection port Diameter D L H W
(mm) (Kg)
brass Both female thread full diameter DN20 20 99 55 0.431
DN25 25 110 60 0.591

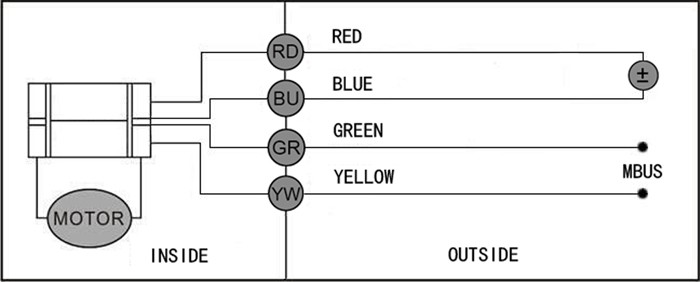

Wiring (DC24V)

Brass Underfloor Three Way Motorised Valve IP65 Protection DC12V

Applications range

  • HVAC, heating supply systems
  • Air conditioning systems
  • Baseboard/radiant heating
  • Convectors
  • Fan coil units
  • Floor heating
  • Unit ventilators
  • VAV reheat
